Directus Display Translations Context

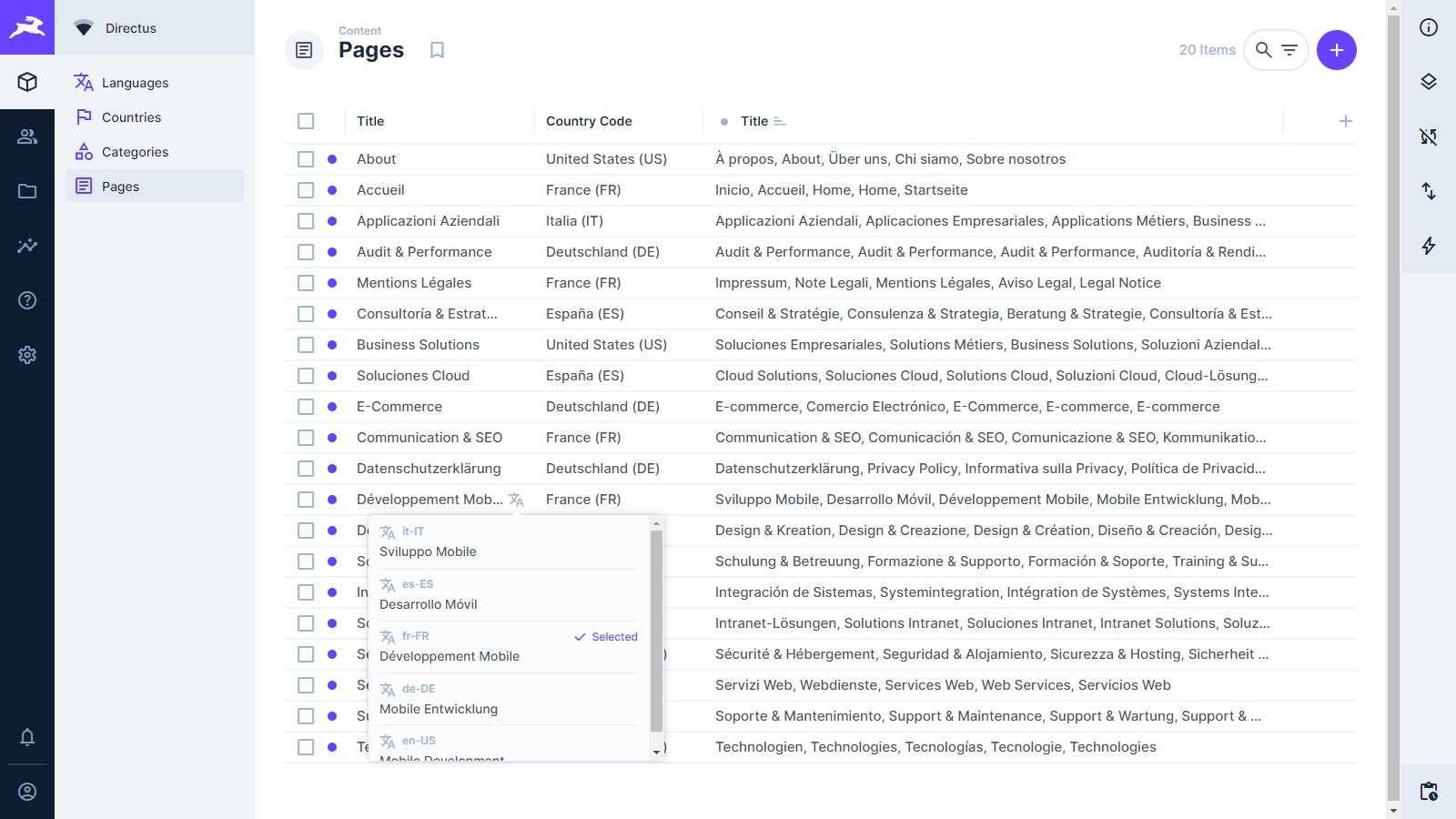

Demonstration of the extension

Directus Display Translations Context

The “Directus Translations Context Display” extension is an optimized display extension for multilingual content in Directus. It automatically displays translated content in the Directus administration interface based on advanced language selection criteria.

This extension is particularly useful for multilingual projects where content is translated into multiple languages and you want to automatically display the translation corresponding to a specific country or language from another collection.

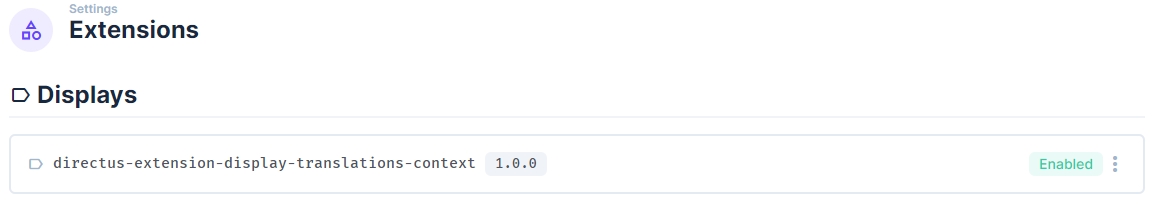

Installed extension

Key Features
Installation
- Installation Steps
- Folder Structure
Configuration
- Main Options
Prerequisites
Relationship Schema
Usage
Technical Operation
- Architecture

Key Features

Intelligent translation display: Automatically displays the translation corresponding to the selected language
Dynamic language selection: Allows specifying a path to a language field via a notation like collection.field.language_code_field
Configurable country-language mapping: Automatic conversion of country codes to language codes
Language selection menu: User interface for viewing and selecting all available translations
Template support: Customization of display with templates including variables and system translations
Edge case management: Fallback mechanisms for missing translations

Installation

# In your Directus project folder
npm install -g @directus/cli
cd extensions/directus-extension-display-translations-context
npm install
npm run build

Then, copy the dist folder to the extensions/displays-translations-context folder of your Directus installation.

Installation Steps

Create the following folder structure in your “extensions” directory:

your-directus-project/
├── extensions/
│   │   └── display-translations-context/    # Extension folder name
│   │       └── dist/                        # Distribution folder name
│   │       │   └── index.js                 # Compiled extension file
│   │       └── package.json                 # JSON file
│   └── ... other extensions
└── ... other Directus files

Copy the dist/index.js file generated by the build into the extensions/display-translations-context/dist/ folder
Also copy the package.json file to the same folder

Docker Container / Coolify

services:
   directus:
      image: 'directus/directus:11.5.1'
      volumes:
         - 'uploads:/directus/uploads'
         - 'extensions:/directus/extensions'
         - 'templates:/directus/templates'
         - '/opt/directus/extensions/display-translations-context/package.json:/directus/extensions/display-translations-context/package.json:ro'
         - '/opt/directus/extensions/display-translations-context/dist/index.js:/directus/extensions/display-translations-context/dist/index.js:ro'
      environment:
         - EXTENSIONS_AUTO_RELOAD=true # if Development environment

Restart your Directus container for the extension to be detected

This structure conforms to how Directus looks for extensions in a Docker environment.

Folder Structure

Development Environment

Environment: EXTENSIONS_AUTO_RELOAD=true

directus-extension-display-translations-context/
├── dist/                  # Build folder generated by the build process
│   └── index.js           # Compiled extension file
├── src/                   # Source code
│   ├── index.ts           # Extension entry point
│   ├── translations-context.vue      # Vue component for displaying translations
│   └── shims.d.ts         # TypeScript declarations
├── .gitignore             # Files ignored by Git
├── package.json           # npm configuration and dependencies
├── README.md              # Main documentation
└── tsconfig.json          # TypeScript configuration

Configuration

When configuring the extension in the Directus interface, you have the following options:

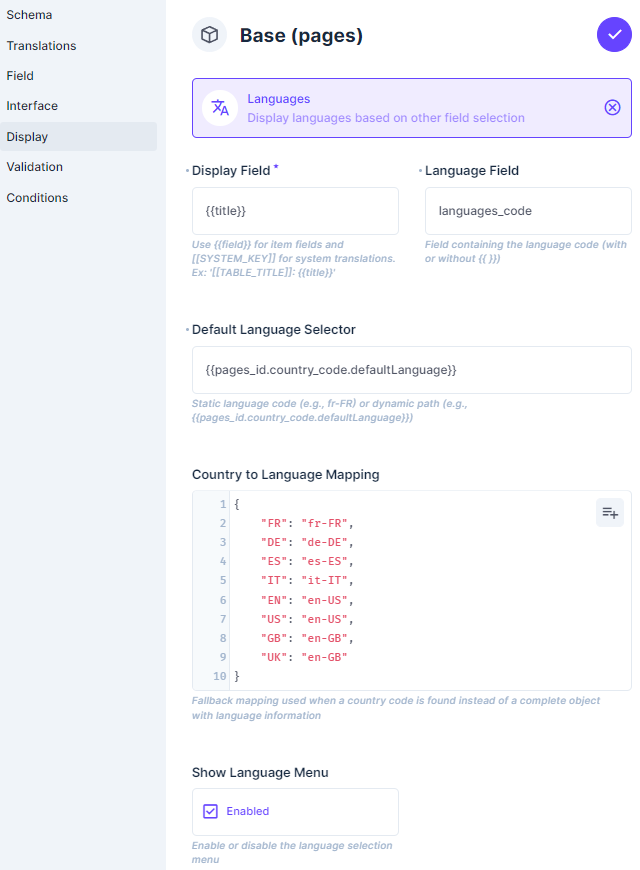

Complete configuration interface

Main Options

Display Field (templateDTC)
- Display format for translations
- Supports field variables with the syntax {{field}}
- Supports system translations with the syntax [[SYSTEM_KEY]]
- Example: [[TABLE_TITLE]]: {{title}}
Advanced example with system translations:

You can use the syntax [[TABLE_TITLE]]→{{title}} to display the translated field name followed by the content:

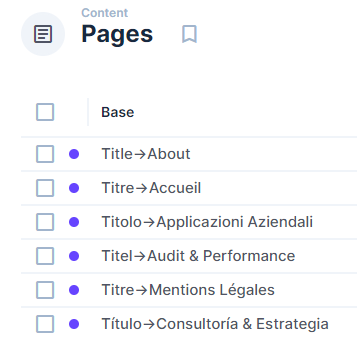

Which gives a result like this in the interface:

This configuration displays the field name in the corresponding language (Title, Titre, Titolo, etc.) followed by the translated content, creating a fully localized interface.
Language Field (fieldDTC)
- Field containing the language code in the translations collection (e.g., Pages_Base)
- Default value: language_code
- Can be a nested path like languages_code.code
Technical Operation

This option defines how the extension identifies the language code in each item of the translations collection (like Pages_Base). Unlike what might be understood, this field only refers to the structure of the translations collection, not to other collections.

The code handles two main cases:
1. Direct field: If you specify a simple field name (e.g., language_code), the extension will directly look for this property in the translation object.
```
// Pages_Base item
{
  "id": 1,
  "language_code": "fr-FR",  // ← Direct access
  "title": "Bonjour"
}
```
2. Nested path: If you specify a path with a dot (e.g., languages_code.code), the extension will follow this path to find the language code:
```
// Pages_Base item
{
  "id": 1,
  "languages_code": {  // ← First level (M2O relation to Languages)
    "code": "fr-FR",   // ← Second level
    "name": "Français"
  },
  "title": "Bonjour"
}
```
Intelligent Type Management

The extension intelligently handles different types of values in the translations collection:
- If the first level is a string, it is used directly as a language code
- If the first level is an object (M2O relation), the extension accesses the property specified after the dot
- If no value is found, the extension uses fallback mechanisms to avoid errors
Concrete Example with Pages_Base

In a structure where Pages_Base contains an M2O relation to the Languages collection:
```
fieldDTC: "languages_code.code"
```
This tells the extension to first look for the languages_code object in each Pages_Base item, then use the code property of that object as the language code.

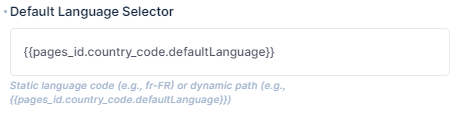

Default Language Selector (selectorDTC)
- Static or dynamic language selector
- Can be a direct language code (e.g., fr-FR)
- Or a dynamic path (e.g., {{pages_id.country_code.defaultLanguage}})
Flexible Language Source Selection

This option allows you to define where the language code to use for display comes from. It offers great flexibility:
1. Static code: Directly use a language code (e.g., fr-FR, en-US)
2. Dynamic path: Specify a path to any linked collection that contains a language code
Possible Language Sources

The selector can point to different collections, not just the Countries collection:
- Countries Collection: {{pages_id.country_code.defaultLanguage}}
- Users Collection: {{user_created.language_preference}}
- Settings Collection: {{site_settings.default_language}}
- Regions Collection: {{region_id.main_language}}
- Organizations Collection: {{organization_id.preferred_language}}
Path Format

The path format always follows the structure: {{collection.field.language_field}} where:
- collection is the name of the relation field in your current collection
- field is the field in the linked collection that contains the reference to the language
- language_field is the field containing the language code
Concrete Example

If you have a pages collection with a relation to organizations that has a language preference:
```
{{organization_id.settings.language_code}}
```
This tells the extension to look for the language code in the language_code field of the settings sub-object of the organization linked to the page.

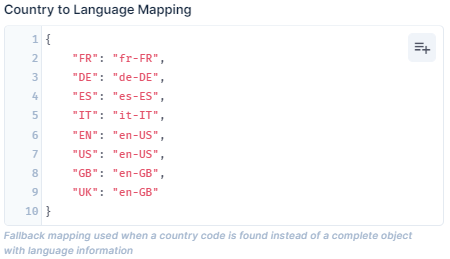

Country to Language Mapping (mappingDTC)
- JSON mapping to convert country codes to language codes
- Useful when the selector returns a country code instead of a language code
- Example: {"FR": "fr-FR", "DE": "de-DE", ...}
Fallback Mechanism and Alternative Solution

This feature serves as a fallback mechanism in the following situations:
1. Data access issues: When the extension cannot directly access the complete language object (for example, due to permission restrictions)
2. Simplified data structure: When the country-language relationship is stored only as a country code (string) instead of a complete object
3. API errors: To avoid 403 errors when attempting to access linked collections
Advanced Configuration Example
```
{
  "FR": "fr-FR",
  "BE": "fr-BE",
  "CH": "fr-CH",
  "CA": "fr-CA",
  "DE": "de-DE",
  "AT": "de-AT",
  "IT": "it-IT",
  "ES": "es-ES",
  "US": "en-US",
  "GB": "en-GB",
  "UK": "en-GB",
  "AU": "en-AU"
}
```
Resolution Process

The extension follows a multi-step process to determine the language code:
1. First attempts to directly access the language field via the specified path
2. If that fails, uses the configured country-language mapping
3. If the country is not in the mapping, attempts to use the country code directly as a language code
4. As a last resort, displays an error message
Typical Use Case

Imagine a structure where pages are linked to countries, but where direct access to the country-language relationship is limited:
```
Page → Country (code: "FR") → Language (code: "fr-FR")
```
With the mapping, the extension can convert “FR” to “fr-FR” without needing to directly access the Language object.
Show Language Menu (menuDTC)
- Enables/disables the language selection menu
- Allows users to see all available translations

Prerequisites

To fully use this extension, you need to configure the following collections in your Directus project:

1. Languages Collection

This collection stores the languages available in your system.

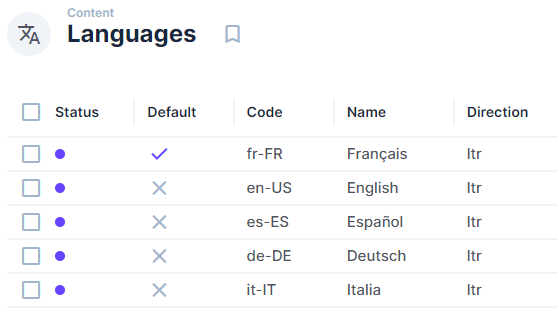

Languages collection

Recommended fields:

code: Language code (e.g., fr-FR, en-US) (input primary)
name: Language name (input)
direction: Writing direction (select)
active: Activation status (boolean)

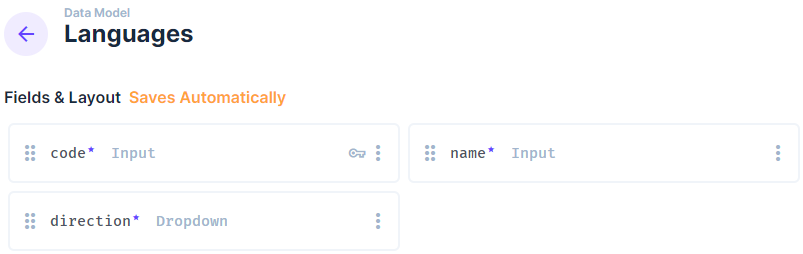

Fields of the languages collection

2. Countries Collection

This collection stores countries and their regional settings.

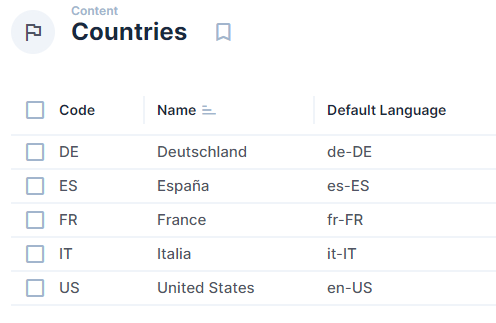

Countries collection

Recommended fields:

code: Country code (e.g., FR, US) (input primary)
name: Country name (input)
defaultLanguage: Relation to the default language for this country (m2o → Languages)

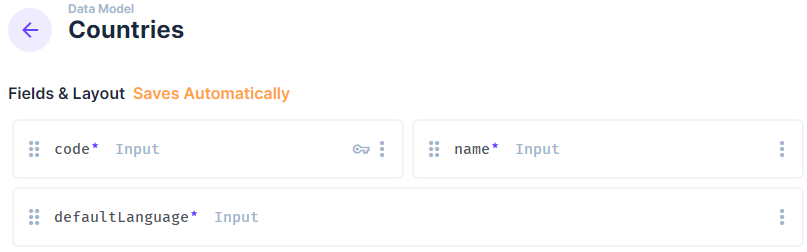

Fields of the countries collection

3. Pages Collection

This collection contains pages with their translations.

Pages collection

Recommended fields:

id: Unique identifier (primary)
status: Publication status (select)
base: Translations (translations → Pages_Base with extension Display-Translation-Context)
country_code: Associated country (m2o → Countries)

4. Pages_Base Collection

This collection serves as a template for translatable pages.

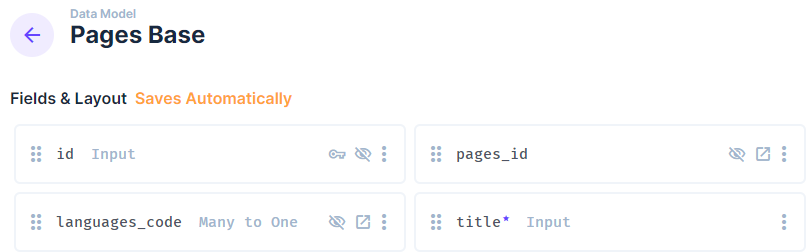

Fields of the pages_base collection

Recommended fields:

id: Unique identifier (primary)
pages_id: Parent page (m2o → Pages)
languages_code: Language (m2o → Languages)
title: Translated title (input)
description: Translated description (textarea)

5. Translations Collection

This collection stores translations for each translatable item.

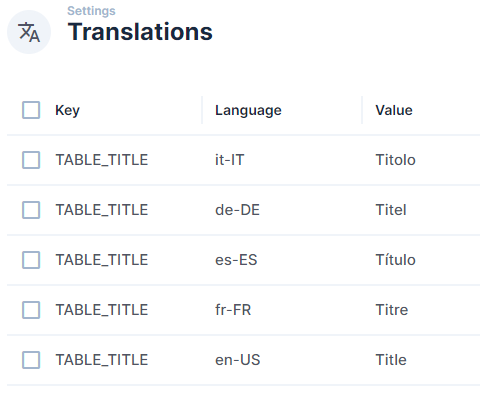

Translations collection

Recommended fields:

Relationship Schema

The following diagram illustrates the relationships between the different collections necessary for the extension to function:

erDiagram
    Languages ||--o{ Pages_Base : "translated in"
    Pages_Base }o--|| Pages : "belongs to"
    Countries ||--o{ Pages : "associated with"
    Countries ||--o{ Languages : "default language"

    Languages {
        string code "fr-FR, en-US (input primary)"
        string name "Français, English (input)"
        string direction "LTR, RTL (select)"
        boolean default "default language (boolean)"
    }

    Countries {
        string code "FR, US (input primary)"
        string name "France, United States (input)"
        relation defaultLanguage "fr-FR, en-US (m2o → Languages)"
    }

    Pages {
        string id "unique identifier (input primary)"
        string status "published, draft (select)"
        relation base "translations (translations → Pages_Base with extension Display-Translation-Context)"
        relation country_code "associated country (m2o → Countries)"
    }

    Pages_Base {
        string id "unique identifier (input primary)"
        relation pages_id "parent page (m2o → Pages)"
        relation languages_code "language (m2o → Languages)"
        string title "translated title (input)"
        string description "translated description (textarea)"
    }

    SystemTranslations {
        string key "TABLE_TITLE (input)"
        string language "fr-FR, en-US (input)"
        string value "Titre, Title (input)"
    }

This schema shows how the collections are interconnected and the types of fields used in each collection. The relationships between collections are essential for the extension to function, particularly for dynamic language selection.

Usage

Typical Use Case

Create a collection with a “translations” type field
Configure the field display to use the “Translations Context” extension
Define the display template (e.g., {{title}})
Specify the language field (e.g., language_code)
Configure the language selector (e.g., {{pages_id.country_code.defaultLanguage}})

Display Customization

You can customize the display of columns in the Directus interface:

Modifying the base column name

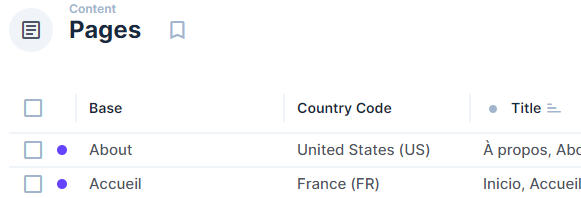

Which gives a result like this:

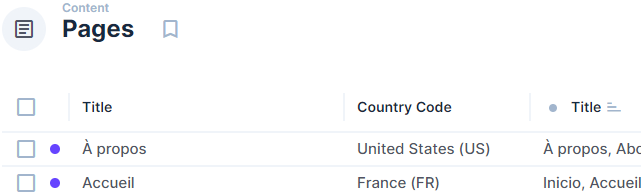

Modifying the base column name to title

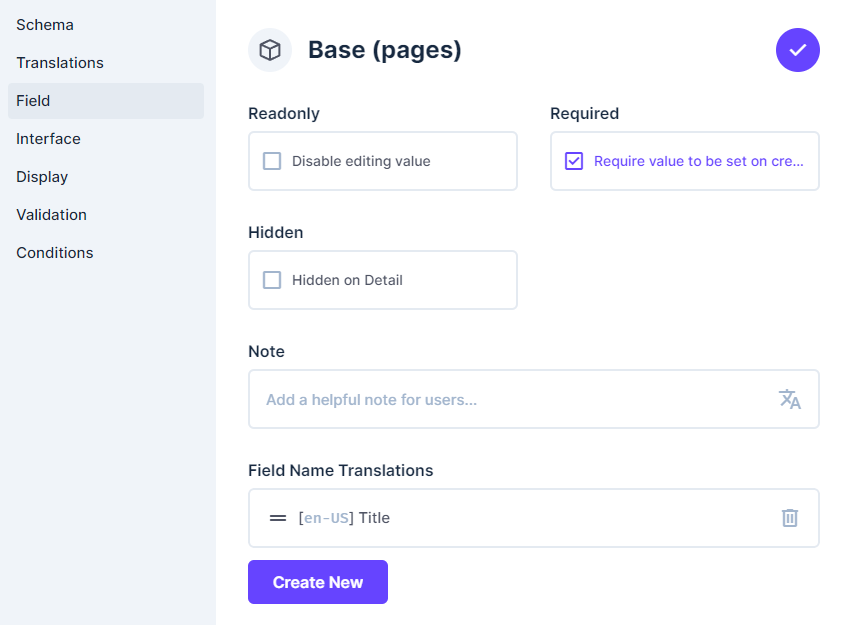

Parameters to set on the “base” field of translations type:

Custom column name

Configuration Examples

Simple Display with Static Language

Display Field: {{title}}
Language Field: language_code
Default Language Selector: en-US
Show Language Menu: true

Advanced Display with Dynamic Selection

Display Field: [[ITEM_TITLE]]: {{title}} ({{description}})
Language Field: languages_code.code
Default Language Selector: {{pages_id.country_code.defaultLanguage}}
Country to Language Mapping: {"FR": "fr-FR", "DE": "de-DE", "US": "en-US"}
Show Language Menu: true

Product Price Display by Country

Display Field: {{price}} {{currency_symbol}}
Language Field: country_code
Default Language Selector: {{product_id.target_market}}
Country to Language Mapping: {"FR": "EUR", "DE": "EUR", "US": "USD", "GB": "GBP", "JP": "JPY"}
Show Language Menu: true

This configuration allows automatically displaying a product’s price in the currency corresponding to the product’s target market. For example, if the product has “US” as its target market, the extension will display the price in USD. The mapping here converts country codes to currency codes rather than language codes.

Technical Operation

Architecture

The extension consists of two main files:

index.ts: Extension entry point that defines:
- Extension metadata (id, name, description, icon)
- Server-side rendering handler
- Configuration options
- Supported field types
translations-context.vue: Vue component that manages:
- Translation display
- Language selection logic
- Interactive selection menu
- Data retrieval via the Directus API

Data Flow

Directus passes translation values to the extension handler
The handler analyzes the options and determines if static or dynamic selection is needed
For static selectors, the handler directly filters translations
For dynamic selectors, the Vue component makes API requests to resolve the path
The component displays the corresponding translation and generates the selection menu

Optimizations

Minimization of API requests by using combined queries
Caching of results to avoid repeated queries
Use of computed properties to optimize renders
Intelligent handling of edge cases and errors

Compatibility

This extension has been tested with Directus 11.5.1.

Troubleshooting

Common Issues

Translation not displayed
- Check that the language field is correctly configured
- Make sure the language selector points to a valid field
- Verify that the translations contain the expected language code
Loading error
- Check access permissions to referenced collections
- Make sure selection paths are correctly formatted
Country-language mapping not working
- Check that the JSON is correctly formatted
- Make sure country codes are in uppercase

Conclusion

The “Directus Translations Context Display” extension offers a flexible and powerful solution for managing the display of multilingual content in Directus. Thanks to its advanced language selection features and intuitive user interface, it significantly simplifies translation management in multilingual projects.

License

This extension is distributed under the MIT license.

Community Feedback

This extension has been primarily tested with Directus 11.5.1. If you use it with other versions of Directus, I would greatly appreciate your feedback on compatibility and any issues you encounter.

How to Contribute

Report Issues: If you encounter any bugs or compatibility issues, please open an issue on GitHub
Share Your Experience: Let me know how you’re using the extension and what features you’d like to see added
Test on Different Versions: If you’re using a different version of Directus, please share your experience to help improve compatibility

Your feedback is invaluable for improving this extension and making it work well for everyone in the Directus community!

Contact

GitHub: idee-web/directus-extension-display-translations-context
Website: www.idee-web.com

Directus Display Translations Context

Table of Contents

Key Features

Installation

Installation Steps

Docker Container / Coolify

Folder Structure

Development Environment

Configuration

Main Options

Prerequisites

1. Languages Collection

2. Countries Collection

3. Pages Collection

4. Pages_Base Collection

5. Translations Collection

Relationship Schema

Usage

Typical Use Case

Display Customization

Configuration Examples

Simple Display with Static Language

Advanced Display with Dynamic Selection

Product Price Display by Country

Technical Operation

Architecture

Data Flow

Optimizations

Compatibility

Troubleshooting

Common Issues

Conclusion

License

Community Feedback

How to Contribute

Contact
